YXAWOT series Welding Oscillator and Seam Tracker Integration

Addtime：2021-10-25 Hits：4928

YXAWOT series Welding Oscillator and Seam Tracker Integration

◆ Brief Introduction

In many welding applications not only requires oscillating, but also tracking. In order to meet the requirements, improve the welding quality and
accuracy, at the same time save the equipment cost for customers, Nanjing YUANXIN Automation Technology Co., Ltd. integrated the functions of
welding oscillator and welding seam tracker, and developed Welding Oscillator & Tracker Integration. This system uses high-precision sensor to detect
groove shape changes’ signals of the workpiece. Then, send the signals to controller, controller drives the slide to control welding torch oscillating
left/right, always along the welding seam center, quickly and accurately, so achieve oscillating and automatic tracking at the same time. It effectively
solves the two welding problems oscillating and tracking, greatly reduces the welder’s labor intensity and the effect of man-made factors, ensures
welding quality and welding efficiency, meanwhile reduces the space and the cost of buying automatic welding equipments.

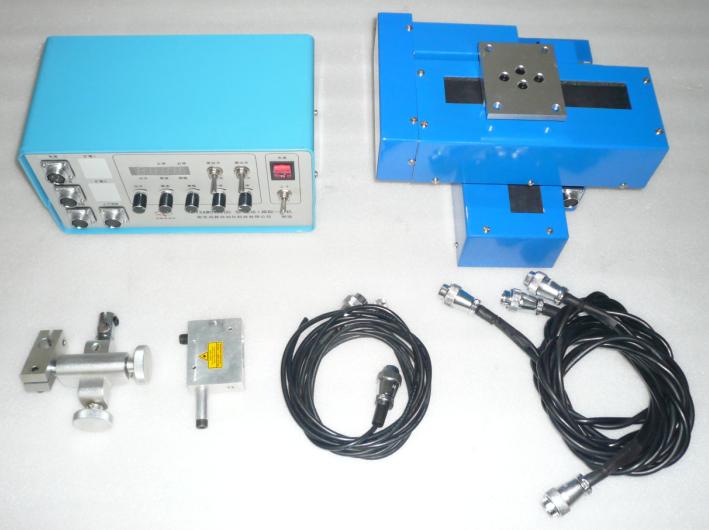

Standard Configuration of Laser Sensor Type

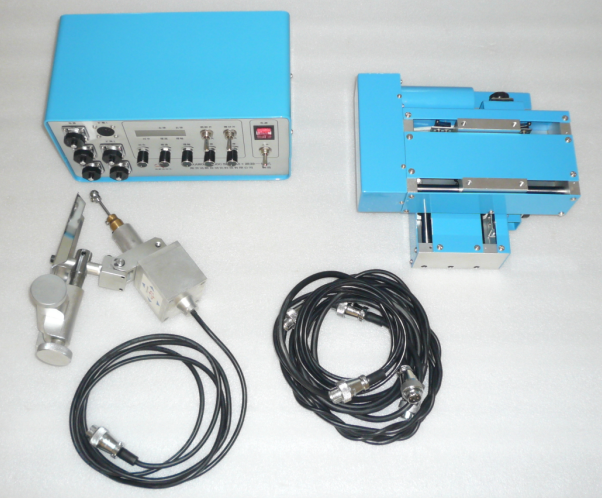

Standard Configuration of Tactile Sensor Type

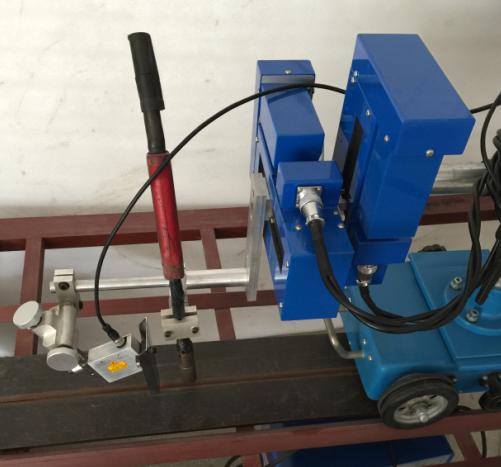

Application of Laser Sensor Type

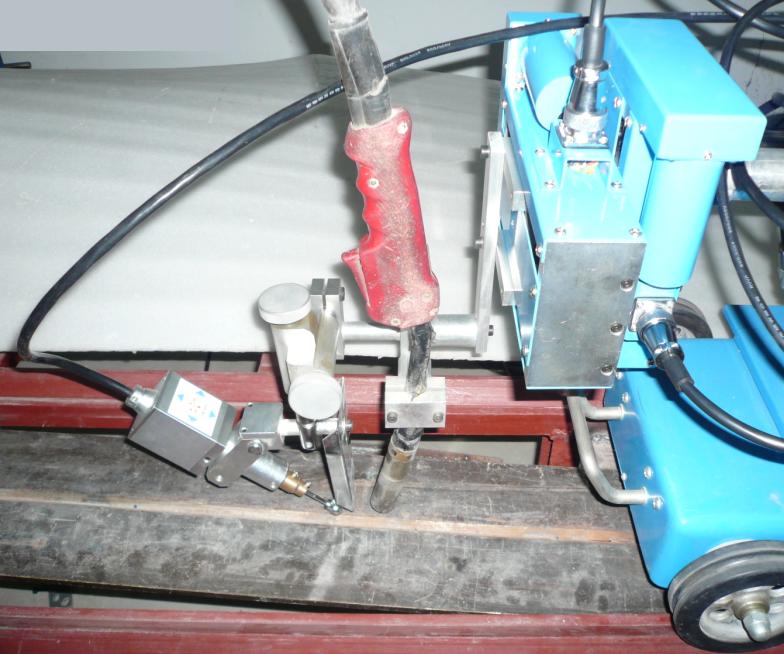

Application of Tactile Sensor Type

◆ Technical Parameters

Model

Technical Data

YXAWOT-100CE

YXAWOT-100L-I

YXAWOT-100L

Sensor Type

Tactile

Laser

Laser

Main Features

Economical;

Horizontal oscillating, horizontal and vertical tracking.

Used in where only needs oscillating and horizontal tracking.
The laser sensor makes it very easy to use.

Medium price;
The laser sensor makes it very easy to use.
Horizontal oscillating, horizontal and vertical tracking.
Dustproof design effectively prevents welding spatter and dust into the slide, and thus enhances product reliability and extends service life.

Wide input power supply voltage range is suitable for using around the world.
Optional communication functions. It is easy to achieve among several sets Weld Oscillator & Tracker Integration and automatic welding machine to compose local area network, and to achieve centralized control of the entire welding equipment.

Slide Effective Stroke

Left/Right 100mm,

Up/Down 100mm

Left/Right 100mm

Left/Right 100mm,

Up/Down 100mm

Maximum Load

15Kg

Maximum Oscillating Speed

4000mm/min

Maximum Oscillating Frequency

120times/min

Oscillating Amplitude

2-25mm

Oscillating Center

10-90mm

Oscillating Accuracy

±0.5mm

Left/Right Dwell Time

0-3s

Maximum Lifting Speed

450mm/min

600mm/min

Tracking Accuracy

±0.5mm

The Welding Methods to Be Applied

TIG, MIG/MAG, Plasma Welding

Drive Mechanism

Motor + Guide + Screw

Controller

Program Control

Input Power Supply

AC100-240V single-phase, 50/60Hz,2A

Control Functions

Manual Control

Oscillating Speed, Amplitude, Center, Left/Right Dwell Time set and adjust; Oscillating Start/Stop; Tracking Start/Stop; Return to the center position automatically while oscillating is stopped.

Up/Down Movement

Up/Down Movement

Auto

Control

Left/Right Oscillating, Left/Right Tracking, Up/Down Tracking

Left/Right Oscillating, Left/Right Tracking

Left/Right Oscillating,

Left/Right Tracking,

Up/Down Tracking

Standard Configuration

Controller, Slide, Sensor, Sensor Cross Regulator, Connecting Cables

User options

Various Probe Cap/Tip for Sensor, Remote Control

Remote Control, Communication Functions

In addition, our company can also supply special Welding Oscillator & Seam Tracker Integration in accordance with the needs of users.

[Top] [close]

Model Technical Data		YXAWOT-100CE	YXAWOT-100L-I	YXAWOT-100L
Sensor Type		Tactile	Laser	Laser
Main Features		Economical; Horizontal oscillating, horizontal and vertical tracking.	Used in where only needs oscillating and horizontal tracking. The laser sensor makes it very easy to use.	Medium price; The laser sensor makes it very easy to use. Horizontal oscillating, horizontal and vertical tracking. Dustproof design effectively prevents welding spatter and dust into the slide, and thus enhances product reliability and extends service life.
		Wide input power supply voltage range is suitable for using around the world. Optional communication functions. It is easy to achieve among several sets Weld Oscillator & Tracker Integration and automatic welding machine to compose local area network, and to achieve centralized control of the entire welding equipment.
Slide Effective Stroke		Left/Right 100mm, Up/Down 100mm	Left/Right 100mm	Left/Right 100mm, Up/Down 100mm
Maximum Load		15Kg
Maximum Oscillating Speed		4000mm/min
Maximum Oscillating Frequency		120times/min
Oscillating Amplitude		2-25mm
Oscillating Center		10-90mm
Oscillating Accuracy		±0.5mm
Left/Right Dwell Time		0-3s
Maximum Lifting Speed		450mm/min		600mm/min
Tracking Accuracy		±0.5mm
The Welding Methods to Be Applied		TIG, MIG/MAG, Plasma Welding
Drive Mechanism		Motor + Guide + Screw
Controller		Program Control
Input Power Supply		AC100-240V single-phase, 50/60Hz,2A
Control Functions	Manual Control	Oscillating Speed, Amplitude, Center, Left/Right Dwell Time set and adjust; Oscillating Start/Stop; Tracking Start/Stop; Return to the center position automatically while oscillating is stopped.
		Up/Down Movement		Up/Down Movement
	Auto Control	Left/Right Oscillating, Left/Right Tracking, Up/Down Tracking	Left/Right Oscillating, Left/Right Tracking	Left/Right Oscillating, Left/Right Tracking, Up/Down Tracking
Standard Configuration		Controller, Slide, Sensor, Sensor Cross Regulator, Connecting Cables
User options		Various Probe Cap/Tip for Sensor, Remote Control	Remote Control, Communication Functions
