C Series Tactile Welding Seam Tracker

Addtime:2021-10-25     Hits:6517

YXAWST-C Series Tactile Welding Seam Tracker

Brief Introduction
YXAWST-C Series tactile seam tracking systems deliver precise automated weld joint tracking for submerged arc and GMAW arc welding processes. Ideal for repetitive welding applications, these systems are recommended over manual and semiautomatic welding to improve quality and consistency while reducing operational costs.This kind welding seam tracker can effectively solve the problems brought about by the weld seam deviation; improve the welding quality and welding efficiency; reduce the welding defects generation; greatly reduce the labor intensity of the welder. It consists of Controller, Sensor, Sensor Cross Regulator, Horizontal Slide, Vertical Slide and Connecting Cables. This system uses high-precision sensor to detect groove shape changes’ signals of the workpiece. Then, send the signals to sontroller. Controller drives the horizontal slide and vertical slide to control welding torch move quickly and accurately, and thus achieves auto welding tracking. It has been supplied on many kinds of auto welding equipments, for example welding manipulator, gantry welding machine, cantilever welding machine, elbow welding machine, vertical / girth welder, the flange welding machine, submerged arc / gas shielded welding carriage, etc.

                                Standard Configuration

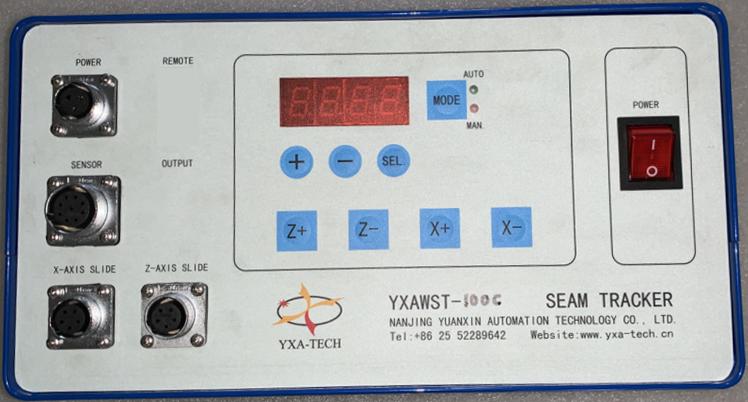

Panel of Controller



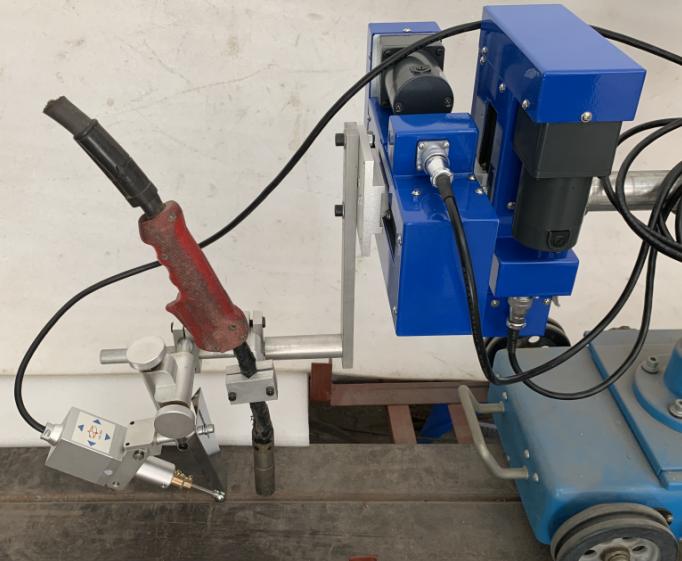

Application

Main Functions and Features
   easily. (Options)
   extend service life.
   product reliability and extends service life.

Technical Parameters
                   Model
Technical Data
YXAWST-100C
YXAWST-1050C
YXAWST-150C
YXAWST-1099C
YXAWST-1599C
YXAWST-200C
Rated Load
25Kg
50Kg
50Kg
100Kg
100Kg
100Kg
Slide Stroke
100mm
100mm
150mm
100mm
150mm
200mm
Maximum Slide Speed
550mm/min

300mm/min

Tracking Accuracy
±0.25mm
±0.3mm
The Welding Methods to Be Applied
TIG, MIG/MAG, Plasma Welding
Single-wire SAW
Two-wire SAW
Slide Structure
Motor + Guide + Ball Screw
Input Power Supply
AC100-240V Single-phase, 50/60Hz, 2A
Standard Configuration

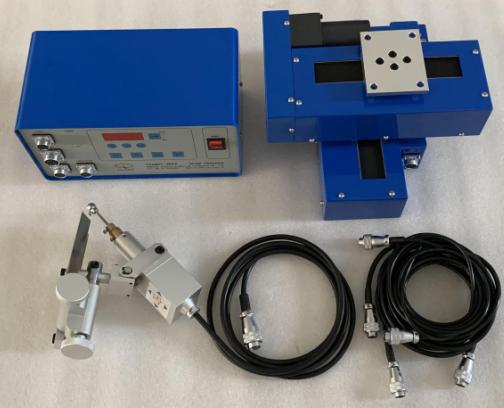

Controller, Horizontal Slide, Vertical Slide, Sensor, Sensor Cross Regulator, Connecting Cables, without Options Functions.
User Options
Remote Control Interface, Output Interface, Remote Control Box ( Including the Connection Cables), Probes to adapt to various Welding Groove-Shaped, Positioning Welding Detection, Welding End Detection.





















In addition, our company can also supply special Welding Seam Tracker in accordance with the needs of users.
