100LH/1025LH series Surfacing Welding Oscillator

Addtime:2021-10-25     Hits:6124
YXAWO-100LH/1025LH series Surfacing Welding Oscillator
Brief Introduction
In order to meet the requirements of the wear-resistant materials overlay welding process for the weld width control, Nanjing YUANXIN Automation Technology Co., Ltd. has developed YXAWO-100LH/1025LH series Surfacing Weld Oscillator. The oscillator has a high-quality micro-controller which drives the slide by motor to control the welding torch oscillating quickly and accurately. Due to the oscillating speed and amplitude can be adjusted at any time, so it is easy to achieve the requirements of different weld width and oscillating speed, greatly reduce the labor intensity of the welder, ensure the welding quality and improve the welding efficiency.

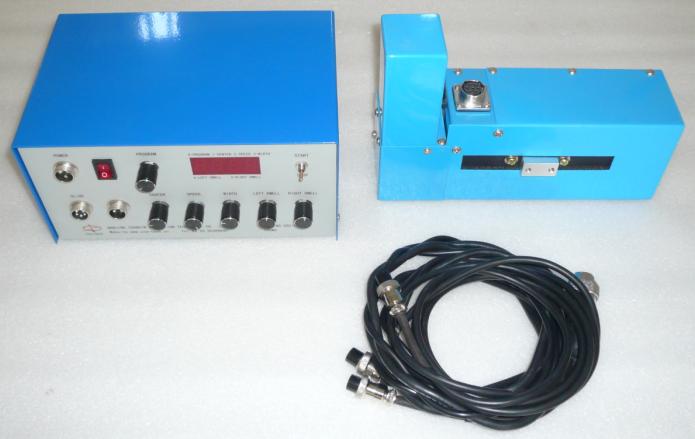

YXAWO-100LH Standard Configuration



YXAWO-1025LH Standard Configuration


Main Functions and Features
The maximum oscillating speed can be up to 5 m/min, fully satisfying variety requirements of the wear-
   resistant material overlay welding.
Oscillating parameters are input by independent digital knob and displayed in digital.
   So it not only has the new advantages of digital control, but also make the adjust more
   convenience and realtime, and visualized to use.
● Multiple sets of oscillating parameters can be preset before welding, and easy to switch
   the parameters while welding. Also, the parameters can be modified as actual needs at
   any time. So, it greatly reduces the difficulty of operation and labor intensity. (only LHP model)
● A large-capacity parameters memory and power-off protection function, to ensure the
   parameters not lost in a sudden power off.
● With parameters restore memory function, parameters can be automatically recovered to
   the before powering status, when the power is on.
● Use the speed & position double closed-loop DC-Servo control technology, to ensure
   oscillating accuracy and speed will not be affected by the load changes.
Motor over-current and over-voltage dual protection function to protect the motor
   performance and extend service life.
● Dustproof design effectively prevents welding spatter and dust into the slide, and thus
   enhances product reliability and extends service life. (only 100LH series)
● Electronic controls oscillating speed, amplitude, center, left/right dwell, to make
   operations simple and convenient.
While oscillator stopping, return to the center automatically.
● Wide input power supply voltage range is suitable for using around the world.
Optional communication functions. It is easy to achieve among several oscillators & automatic
   welding machine to compose local area network, and to achieve centralized control of the entire
   welding equipment.

Technical Parameters
                               Model
Technical Data
YXAWO-100LHD
YXAWO-1025LHD
YXAWO-100LHP
YXAWO-1025LHP
Program Function
without
Have 10 programs, each program has 5 parameters, including Oscillating Center, Speed, Width, Left/Right Dwell Time.
Oscillating Parameters Input Mode
Digital, Independent Knob Adjustment, Digital Display
Rated Load
5Kg for 100LH series, 25Kg for 1025LH series
Slide Stroke
60mm or 100mm
Maximum Oscillating Speed
5000mm/min
Maximum Oscillating Frequency
150times/min
Oscillating Width
2-50mm or 2-90mm
Oscillating Center
0-50mm or 10-90mm
Oscillating Accuracy
±0.5mm
Left / Right Dwell Time
0-3s
The Welding Methods to Be Applied
TIG, MIG, MAG, Plasma Welding
Control Methods
Speed & Position Double Closed-Loop DC-Servo Control
Slide Structure
Motor + Guide + Sensor
Input Power Supply
AC100-240V Single-phase, 50/60Hz, 2A
Standard Configuration
Controller, Slide (oscillating mechanism), Connecting Cables (including Power Cable and Slide Cable)
User Options
Welding Torch Holder, Cross Regulation Slide, Communication Interface for Remote Control


In addition, our company can also supply special welding oscillator in accordance with the needs of users.
