100LS series Submerged Arc Welding Oscillator

Addtime:2021-10-25     Hits:5636
YXAWO-100LS series Submerged Arc Welding Oscillator
Brief Introduction
In order to meet the requirements of the submerged arc welding process for the weld width control; improve the welding quality and welding efficiency; enhance the automation degree of the automatic welding equipment, Nanjing YUANXIN Automation Technology Co., Ltd. has developed YXAWO-100LS series Submerged Arc Weld Oscillator. The oscillator has a high-quality micro-controller which drives the slide by motor to control the welding torch to oscillate quickly and accurately. Due to the oscillating speed and amplitude can be adjusted at any time, so it is easy to achieve the requirements of different weld width and oscillating speed, greatly reduce the labor intensity of the welder, ensure the welding quality and improve the welding efficiency.
Standard Configuration

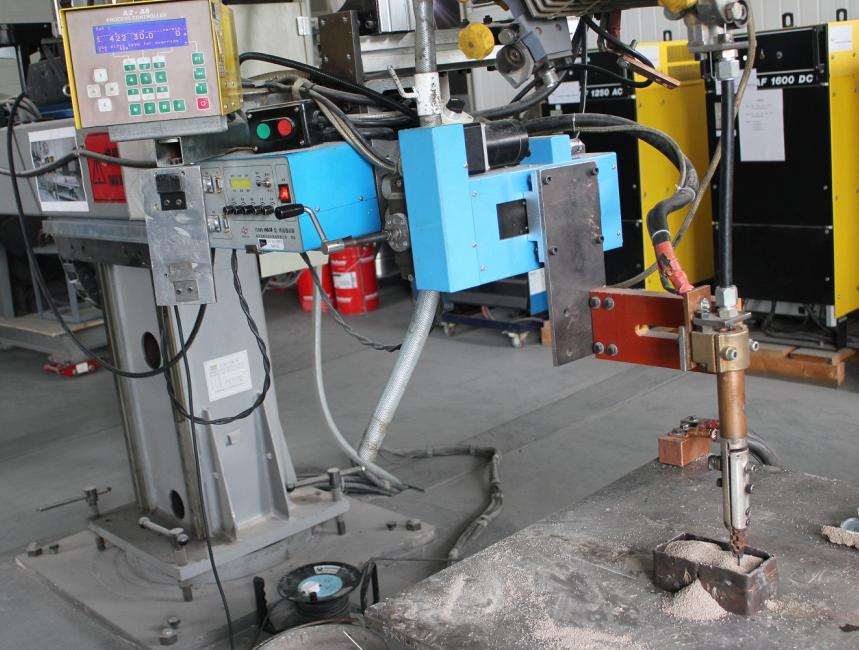

Application


Main Functions and Features
● Oscillating parameters are input by independent digital knob and displayed in digital.
   So it not only has the new advantages of digital control, but also make the adjust more
   convenience and realtime, and visualized to use.
● With a parameters memory and power-off protection function, ensure the parameters not
   lost in a sudden power off.
● With parameters restore memory function, parameters can be automatically recovered to
   the before powering status, when the power is on.
● Use the speed & position double closed-loop DC-Servo control technology, to ensure
   oscillating accuracy and speed will not be affected by the load changes.
Motor over-current and over-voltage dual protection function to protect the motor
   performance and extend service life.
Dustproof design effectively prevents welding spatter and dust into the slide, and thus
   enhances product reliability and extends service life.
● Electronic controls oscillating speed, amplitude, center, left/right dwell, to make
   operations simple and convenient.
While oscillator stopping, return to the center automatically.
● Wide input power supply voltage range is suitable for using around the world.

Technical Parameters
                            Model
Technical Data
YXAWO-100LSA
YXAWO-100LSD
YXAWO-100LSP
Oscillating Parameters
Input Mode
Analog, Independent Knob Adjustment
Digital, Independent Knob Adjustment, Digital Display
Program Function
without
without
Have 10 programs, each program has 5 parameters, including Oscillating Center, Speed, Width, Left/Right Dwell Time.
Rated Load
50Kg
Slide Stroke
100mm
Maximum Oscillating Speed
2200mm/min
Oscillating Amplitude
10-90mm
Oscillating Center
20-80mm
Oscillating Accuracy
±0.5mm
Left / Right Dwell
0-2s
0-3s
0-3s
The Welding Methods to Be Applied
Submerged Arc Welding
Control Methods
Speed & Position Double Closed-Loop DC-Servo Control
Slide Structure
Motor + Guide + screw + Sensor
Input Power Supply
AC100-240V Single-phase, 50/60Hz, 2A
Outline Dimension
Controller 300×160×160mm; Slide 371×231×106mm
Mounting Hole Size
Controller 257×105mm, 4-M4; Slide 100×100mm, 4-M8
Weight
Controller 3.5Kg, Slide 8.5Kg

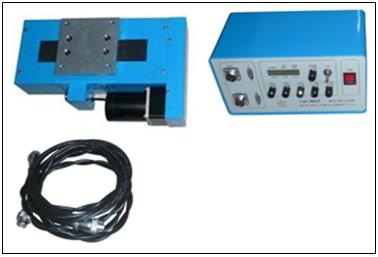

Standard Configuration
Controller, Slide, Connecting Cables (including Power Cable and Slide Cable).
User Options
Communication Interface for Remote Control


In addition, our company can also supply special welding oscillator in accordance with the needs of users.
